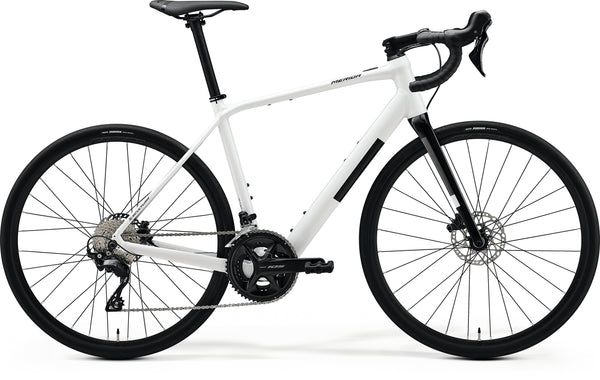

Merida eScultura 400 white edition

Sale price €3.299,00

Tax included

frame size

Out of stock

Loading image:
Merida on the pulse of time

Continuous development and the highest quality standards for more than 50 years.

The Merida eScultura 400 Endurance

Slim design and low weight.

Call it what you want, but if you ride further and have more fun than ever, you'll end up having the last laugh. Smooth, drag-free assistance and natural speed. Cheating? Not when you're having this much fun. The eSCULTURA 400 brings all the benefits of a pedal-assist motor to a real road bike, allowing you to keep up with the group when climbing without feeling heavy or dragging when pedaling above the assist limit. The 250 Wh battery sits in the downtube, while MAHLE's new X30 low-drag hub motor works perfectly with the proven Shimano 105 rear derailleur and hydraulic disc brakes to provide a ride that's just as sporty as a regular road bike.

The Mahle rear-wheel drive gives the eScultura a non-e-bike silhouette

The eSCULTURA is also equipped with 32 mm road tires on 700C rims as standard - ideal for a dynamic and active riding style. However, the eSCULTURA can be easily adapted for even more flexibility: With 700C wheels, tire widths of up to 40 mm can be used, even when mudguards are mounted. If you prefer 650B wheels, tires with a width of up to 47 mm are also possible for more off-road suitability. This means your eSCULTURA is ready for any challenge - whether on the road or off-road adventures.

Highlights of the Merida eScultura Endurance 400:

  • The latest MAHLE ebikemotion X30 rear hub motor offers natural support and ensures an authentic riding experience
  • Efficient, low resistance stepping above the support line
  • Elegant Shimano 105 groupset with 2-speed crankset
  • Triple-butted aluminum frame with integrated 250 Wh battery
  • Slim "normal bike" silhouette and low weight

Specs

material
Frame: Aluminum TB
Fork: Merida Mission CX Carbon

Motor & Battery
Engine: Mahle X30
Battery: Mahle 250Wh

braking system
Brake: Shimano 105 R7100
Brake disc: Shimano RT64 160mm

drive
Gears: Shimano 105 R7100
Front derailleur: Shimano 105 R7100
Crank: Shimano 105 R7100 52/36
Cassette: Shimano 105 11/36 12-speed

wheel & tires
Wheels: Merida Expert SL
Tires: Maxxis Pursuer 700x32 foldable

Weight
12.2 kg

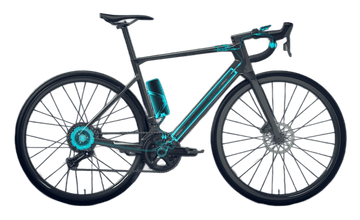

Mahle X30 system

With a robust motor that is both easy to use and
The X30 system was developed with the knowledge gained from nine years
Development as a leading provider of lightweight eBike solutions
further developed.

Manuals

operating instructions/manuals

Merida Bikes user manuals
